Operations preserving Convexity

This lecture covers operations that preserve convexity—building complex convex functions from simpler convex pieces.

Review: Basic Operations from Lecture 3

We’ve already seen some fundamental operations in Lecture 3:

Nonnegative weighted sum: If $f_1, f_2$ are convex, then $f_1 + f_2$ is convex
Nonnegative scaling: If $f$ is convex and $\alpha > 0$, then $\alpha f$ is convex
Composition with affine mapping: If $f$ is convex, then $g(x) = f(Ax + b)$ is convex

Now we’ll extend this toolkit with more powerful operations that preserve convexity.

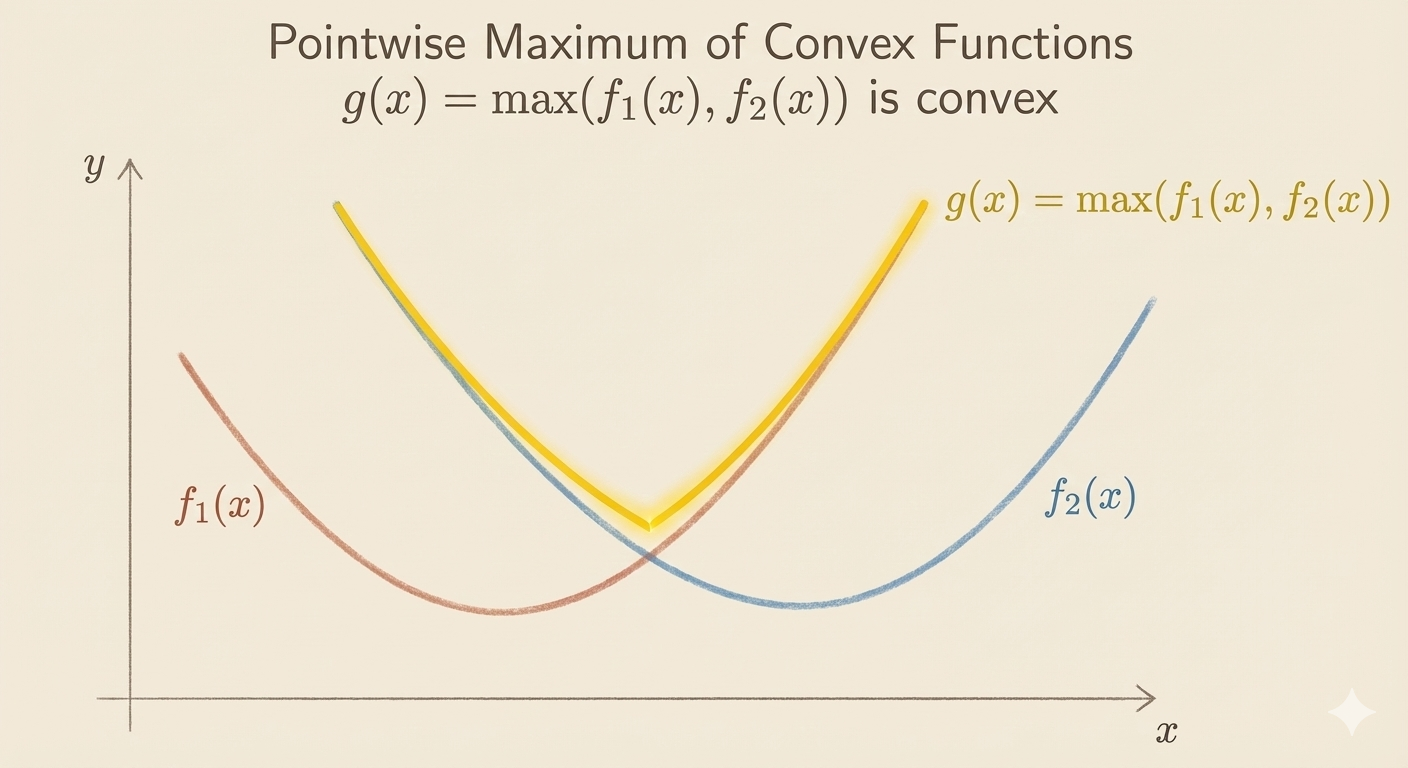

Pointwise Maximum

if $f_1,...f_n$ are convex, then $f(x)=\max(f_1(x),...f_n(x))$ is convex

Examples:

Piecewise-linear function: $f(x)=\max_{i=1,...m}(a_i^\top x+b_i)$ is convex
Sum of $r$ largest components of $x \in R^n$: \[ f(x)=x_{[1]}+x_{[2]}+...x_{[r]} \] is convex

Pointwise Supremum

if $f(x,y)$ is convex in $x$ for each $y \in A$, then \[ g(x)=\sup_{y \in A}f(x,y) \] is convex.

Examples:

Support function of a set C: $S_C(x)=\sup_{y\in C}y^\top x$
Distance to farthest point in a set C: $f(x)=\sup_{y\in C}||y-x||$
Maximum eigenvalue of symmetric matrix for $X \in S^n$, $\lambda_{\max}(X)=\sup_{||y||_2=1}y^\top Xy$

Composition with Scalar Functions

Composition of g: $R^n \to R$, and h : $R \to R$

$f(x)=h(g(x))$

is convex if

g is convex, h is convex, $\tilde{h}$ nondecreasing
g is concave, h is convex, $\tilde{h}$ nonincreasing

Proof

$f'(x)=h'(g(x))\cdot g'(x)$

From the general 1st order derivative theorem of $f_n(x)=f_a(x)\cdot f_b(x)$ is $f_n'(x)=f_a'(x)\cdot f_b(x)+f_a(x)\cdot f_b'(x)$

So the second order derivative of $f(x)$ is:

$f''(x)=h''(g(x))\cdot g'(x)^2+h'(g(x))g''(x)$

Composition with scalar functions analysis

Examples:

$\exp(g(z))$ is convex if $g(z)$ is convex
$\frac{1}{g(z)}$ is convex if $g(z)$ is concave and positive

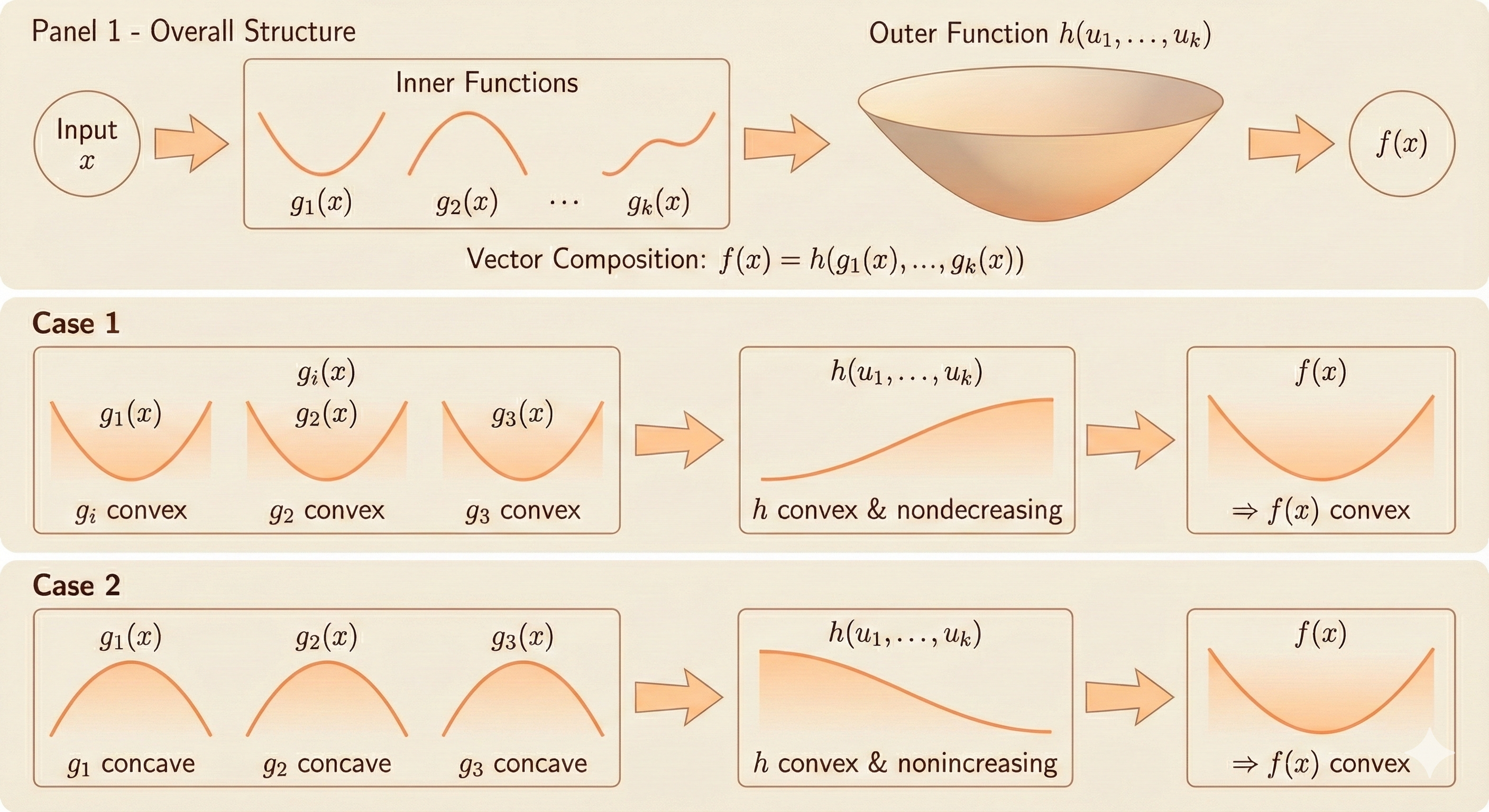

Vector Composition (General Rule)

Composition of g: $R^n \to R^k$ and h: $R^k \to R$

$f(x)=h(g(x))=h(g_1(x),g_2(x),...,g_k(x))$

is convex if

case 1: $g_i$ is convex, h is convex, $\tilde{h}$ nondecreasing in each argument
case 2: $g_i$ is concave, h is convex, $\tilde{h}$ nonincreasing in each argument

Proof

\[ f''(x)=g'(x)^\top \nabla^2h(g(x))g'(x)+\nabla h(g(x))^\top g''(x) \]

Examples:

$\sum_{i=1}^m\log g_i(x)$ is concave if $g_i(x)$ is concave and positive
$\log\sum_{i=1}^m\exp g_i(x)$ is convex if $g_i(x)$ is convex

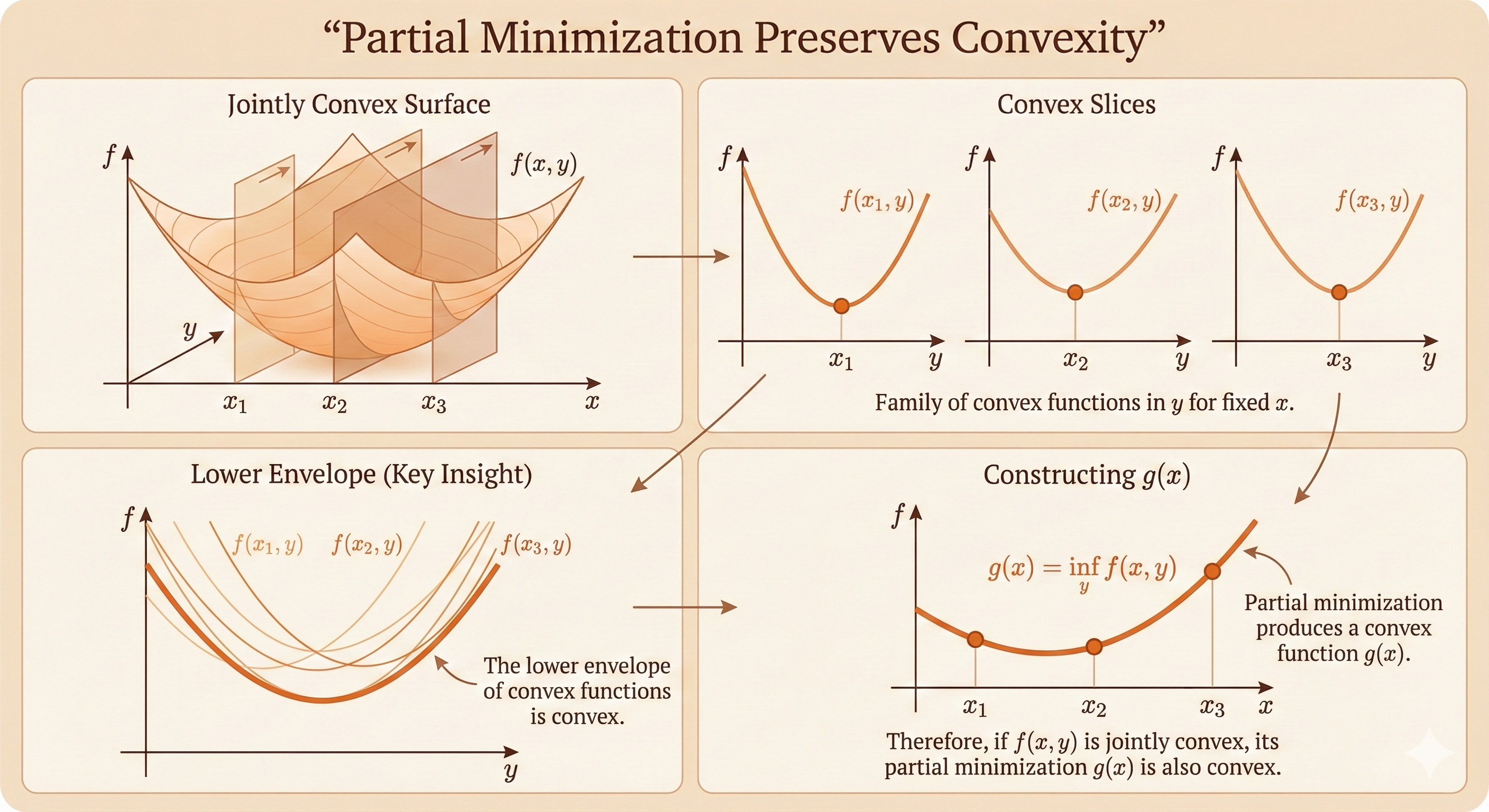

Minimization

if $f(x,y)$ is convex in $(x,y)$ and $C$ is a convex set, then \[ g(x)=\inf_{y \in C}f(x,y) \] is convex.

Example 1: Quadratic function

\[ f(x,y) = \begin{bmatrix} x \\ y \end{bmatrix}^\top \begin{bmatrix} A & B \\ B^\top & C \end{bmatrix} \begin{bmatrix} x \\ y \end{bmatrix}, \quad Q = \begin{bmatrix}A&B\\B^\top&C\end{bmatrix}\succeq 0,\; C\succ 0 \]

Minimizing over y gives $g(x)=\inf_yf(x,y)$

The gradient with respect to y is:

\[ \nabla_y f(x,y) = 2B^\top x + 2C y \]

Setting the gradient to zero: $2B^\top x + 2C y = 0 \Rightarrow y^*=-C^{-1}B^\top x$

\[ f(x,y^\star)=x^\top(A-BC^{-1}B^\top)x \]

From Schur complement, $A-BC^{-1}B^\top \succeq 0$

From the preservation rule, $g(x)$ is convex.

Example 2: Distance to a set

Distance to a set: $\mathrm{dist}(x,S)=\inf_{y\in S}||x-y||$ is convex if S is convex

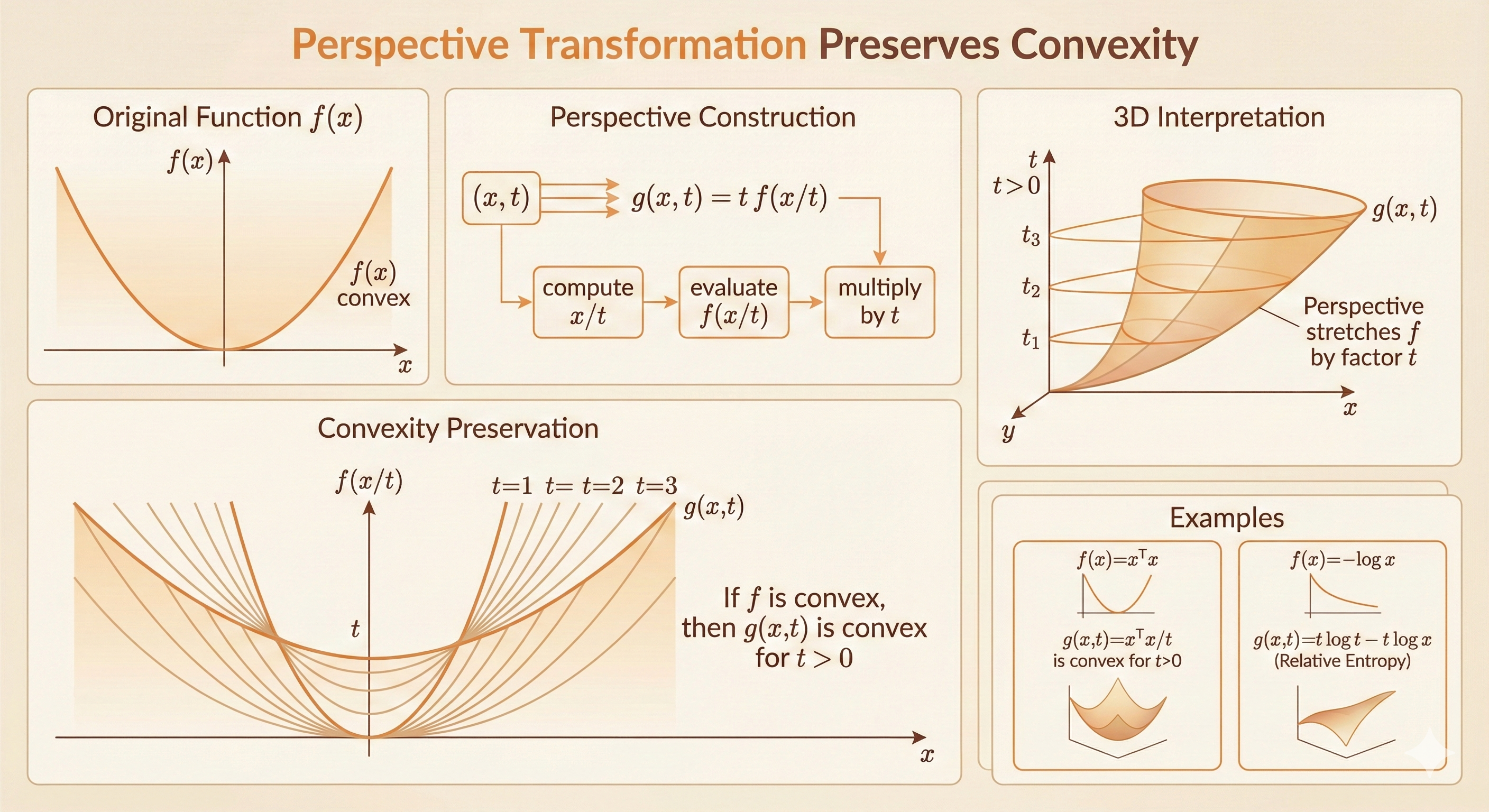

Perspective

The perspective function of a function $f: R^n \to R$ is the function $g: R^n \times R \to R$

\[ g(x,t)=tf(x/t), \quad \mathrm{dom}\, g=\{(x,t) |x/t\in \mathrm{dom}\,f,t> 0 \} \]

$g$ is convex if $f$ is convex.

Examples:

$f(x)=x^\top x$ is convex; hence $g(x,t)=x^\top x/t$ is convex for $t> 0$
$f(x)=-\log x$ is convex, so $g(x,t)=t\log t- t \log x$ is convex on $R_{++}^2$
if f is convex, then $g(x)=(c^\top x+b)f((Ax+b)/(c^\top x+d))$ is convex on \[ \{x \mid c^\top x + b > 0,\ (Ax+b)/(c^\top x + d) \in \mathrm{dom}\, f \} \]
