EE 364A (Convex Optimization): Lecture 5.2 - Monotonicity and Convexity with Generalized Inequalities

Convex Optimization

Monotonicity

Generalized Inequalities

Author

Chao Ma

Published

December 14, 2025

Convex Optimization Textbook - Chapter 3.6 (page 122)

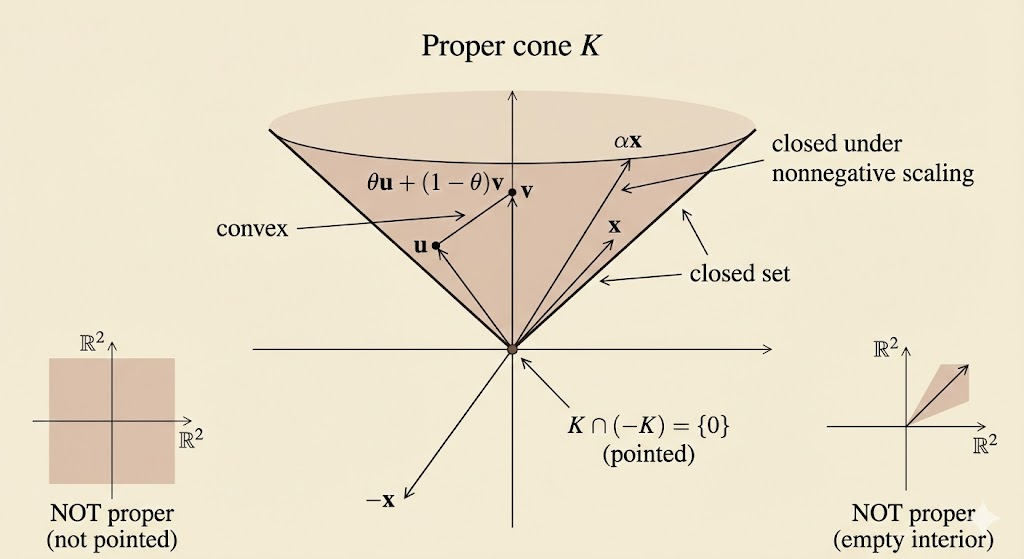

Proper Cone

A proper cone has five properties:

Cone: $x \in K,\ \alpha \ge 0 \Rightarrow \alpha x \in K$
Convex: $x,y \in K,\ 0 \le \theta \le 1 \Rightarrow \theta x + (1-\theta)y \in K$
Closed
Pointed
Non-empty interior

A cone $K\subseteq\mathbb{R}^n$ is proper if it is convex, closed, pointed, and has nonempty interior.

Monotonicity with respect to generalized inequality

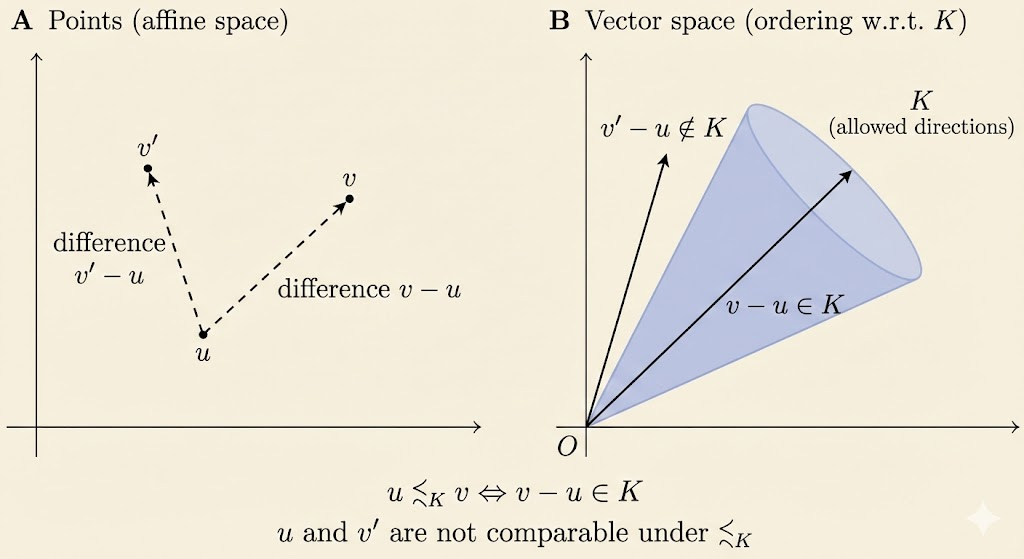

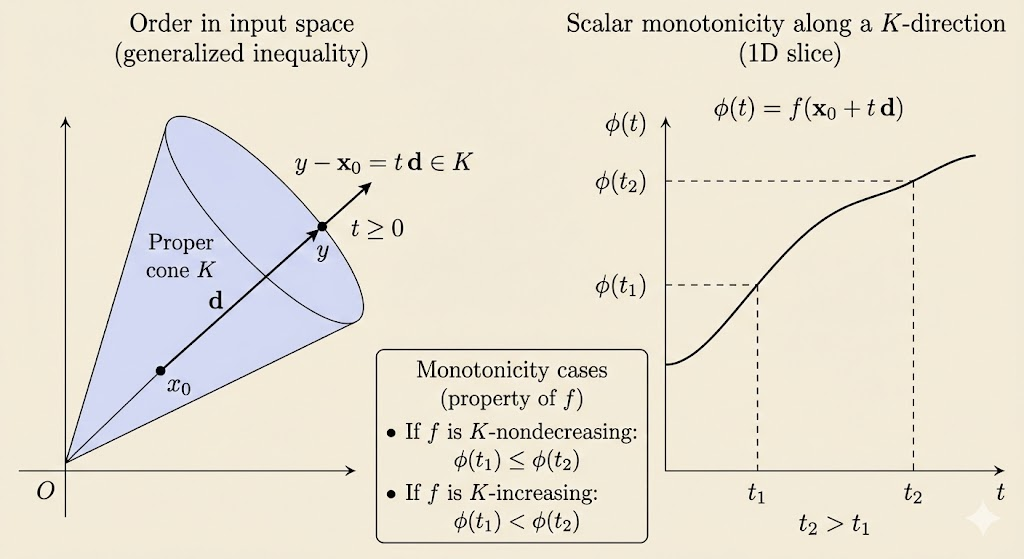

Suppose $K \subseteq \mathbb{R}^n$ is a proper cone with associated generalized inequality $\preceq_K$. A function $f:\mathbb{R}^n \to \mathbb{R}$ is called K-nondecreasing if:

\[ x \preceq_K y \Longrightarrow f(x)\le f(y) \]

and K-increasing if:

\[ x \preceq_K y, x\ne y \Longrightarrow f(x)< f(y) \]

Examples

Monotone Vector Functions

A function $f:\mathbb{R}^n \to \mathbb{R}$ is nondecreasing with respect to $\mathbb{R}_+^n$ iff:

\[ x_1\le y_1,...,x_n \le y_n \Longrightarrow f(x)\le f(y) \]

Matrix Monotone Functions

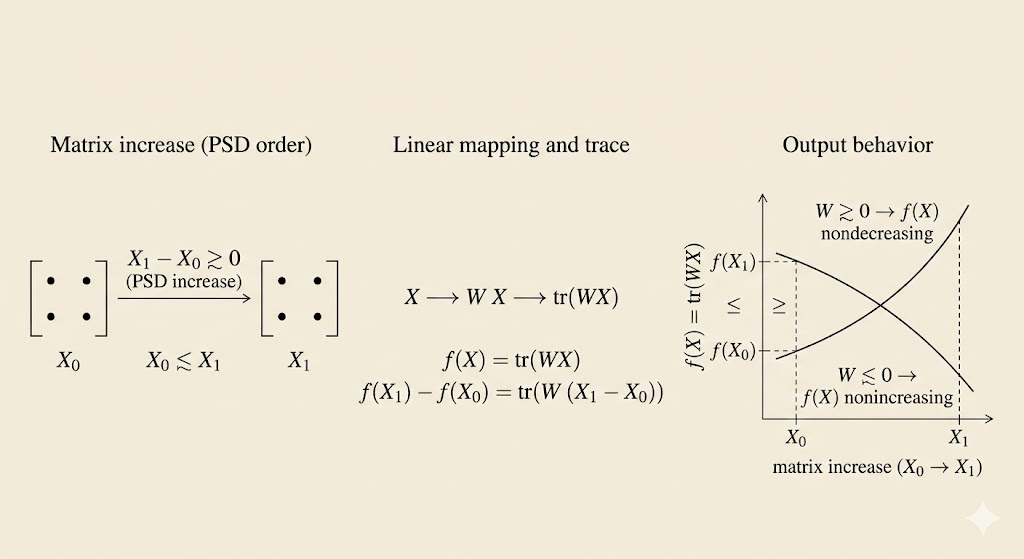

A function $f:S^n \to \mathbb{R}$ is called matrix monotone (increasing, decreasing) if it is monotone with respect to the positive semidefinite cone.

Examples:

$\mathrm{tr}(WX) \quad |W \in S^n$:
- $W \succeq 0$: matrix nondecreasing
- $W \succ 0$: matrix increasing
- $W \preceq 0$: matrix nonincreasing
- $W \prec 0$: matrix decreasing
$\mathrm{tr}(X^{-1})$ is matrix decreasing on $S_{++}^n$
$\mathrm{det}X$ is matrix increasing on $S_{++}^n$, and matrix nondecreasing on $S_{+}^n$

Gradient Condition for Monotonicity

For differentiable function $f: \mathbb{R} \to \mathbb{R}$, with convex domain, is nondecreasing iff $f'(x)\ge 0 \quad \forall \, x\in \mathrm{dom }f$, and increasing if $f'(x)> 0 \quad \forall \, x\in \mathrm{dom }f$ (For the strict condition, the converse is not true.).

Note

For example, $f(x)=x^3$ is increasing, but the derivative is $3x^2$. When $x=0$, the derivative is 0.

These conditions can be readily extended to the case of monotonicity with respect to a generalized inequality. A differentiable function $f$, with convex domain, is K-nondecreasing iff:

\[ \nabla f(x) \succeq_{K^*} 0 \quad \forall \,x \in \mathrm{dom }f \]

Dual Inequality

The gradient should be non-negative in the dual inequality.

For the strict case, if $\nabla f(x) \succ_{K^*} 0 \quad \forall \,x \in \mathrm{dom }f$, then $f$ is K-increasing.

Proof

Sufficient Condition:

Assume $f$ satisfies $\nabla f(x) \succeq_{K^*} 0 \quad \forall \,x \in \mathrm{dom }f$, and there exists $x,y$ such that $x \preceq_{K} y$ and $f(y)< f(x)$. By differentiability there exists a $t \in [0,1]$ with:

\[ \frac{d}{dt}f(x+t(y-x))=\nabla f(x+t(y-x))^\top(y-x) <0 \]

Since $y-x \in K$, so $\nabla f(x+t(y-x)) \notin K^*$, which contradicts our assumption that $\nabla f(x) \succeq_{K^*} 0$ everywhere.

Necessary Condition:

Assume $\nabla f(x) \succeq_{K^*} 0$ doesn’t hold for $x=z$. Then there exists a $v \in K$ with $\nabla f(z)^\top v < 0$, which means $f$ is not K-nondecreasing.

Convexity with respect to a general inequality

Suppose $K \subseteq \mathbb{R}^m$ is a proper cone with associated generalized inequality $\preceq _K$. We say $f:\mathbb{R}^n\to \mathbb{R}^m$ is K-convex if for all $x,y$ and $0 \le \theta \le 1$:

\[ f(\theta x+(1-\theta) y)\preceq_K \theta f(x)+(1-\theta)f(y) \]

The function is strictly K-convex if:

\[ f(\theta x+(1-\theta) y)\prec_K \theta f(x)+(1-\theta)f(y) \]

for all $x \ne y$ and $0 \le \theta < 1$.

Examples

Matrix Convexity

Matrix Inequality:

For $A \in S^n, B \in S^n$:

$A \succ B$ if $A-B$ is positive definite
$A \succeq B$ if $A-B$ is positive semidefinite
$A\prec B$ if $A-B$ is negative definite
$A \preceq B$ if $A-B$ is negative semidefinite
Otherwise, not comparable

Suppose $f$ is a symmetric-valued function, e.g., $f:\mathbb{R}^n \to S^m$. The function $f$ is convex with respect to matrix inequality if:

\[ f(\theta x+(1-\theta)y) \preceq \theta f(x)+(1-\theta)f(y) \]

for all $x$ and $y$, and $0 \le \theta \le 1$.

$f$ is strictly matrix convex if $f(\theta x+(1-\theta)y) \prec \theta f(x)+(1-\theta)f(y)$ for all $x \ne y$ and $0 \le \theta \le 1$.

Examples:

$f(X)=XX^\top$ where $X \in \mathbb{R}^{n \times m}$
$f(X)=X^p$ where $X \in S_{++}^n$, $1\le p\le2$ or $-1 \le p\le 0$
- $f$ is matrix concave for $0 \le p \le1$
$f(X)=e^X$ is NOT matrix convex on $S^n$ for $n \ge 2$

Dual characterization of K-convexity

A function $f:\mathbb{R}^n \to \mathbb{R}^m$ is K-convex iff $\forall w \succeq _{K^*} 0$, $w^\top f$ is convex (in the ordinary sense).

$f$ is strictly K-convex if $w^\top f$ is strictly convex for every nonzero $w$ in $K^*$.

Differentiable K-convex functions

A differentiable function $f$ is K-convex iff:

Its domain is convex
For all $x,y \in \mathrm{dom } f$:

\[ f(y)\succeq_K f(x)+Df(x)(y-x) \]

where $Df(x)$ is the Jacobian matrix of $f$ at $x$.

Composition Theorem

Many of the results on composition can be generalized to K-convexity. For example, if:

$g:\mathbb{R}^n \to \mathbb{R}^p$ is K-convex
$h: \mathbb{R}^p \to \mathbb{R}$ is convex
$\tilde{h}$ is K-nondecreasing (extended-value extension of $h$)

The condition that $\tilde h$ is K-nondecreasing implies $\mathrm{dom}\,h - K = \mathrm{dom}\,h$.

Then $h\circ g$ is convex.
