Quadratic Optimization Problems (QP)

A convex optimization problem is a quadratic program (QP) if:

the objective is convex quadratic
the inequality constraints are affine

A standard form is \[ \begin{aligned} \text{minimize} &\quad \frac{1}{2}x^\top Px + q^\top x + r \\ \text{subject to} &\quad Gx \preceq h \\ &\quad Ax = b \end{aligned} \] where $P \in S_+^n$, $G \in \mathbb{R}^{m\times n}$, and $A \in \mathbb{R}^{p\times n}$.

Examples

Least squares

\[ \text{minimize} \quad \|Ax-b\|_2^2 \] This unconstrained problem has the closed-form solution $x = A^+ b$.

Adding simple box constraints turns it into a QP: \[ \begin{aligned} \text{minimize} &\quad \|Ax-b\|_2^2 \\ \text{subject to} &\quad l_i < x_i < u_i, \quad i=1,\dots,n \end{aligned} \]

Linear program with random cost

Start from the linear program \[ \begin{aligned} \text{minimize} &\quad c^\top x \\ \text{subject to} &\quad Gx \preceq h \\ &\quad Ax = b \end{aligned} \] Assume the cost is random with mean $\bar{c}$ and covariance $\Sigma$. A risk-averse formulation becomes the QP \[ \begin{aligned} \text{minimize} &\quad \bar{c}^\top x + \gamma x^\top \Sigma x = \mathbb{E}[c^\top x] + \gamma \mathrm{Var}(c^\top x) \\ \text{subject to} &\quad Gx \preceq h \\ &\quad Ax = b \end{aligned} \] where $\gamma > 0$ is a risk-aversion parameter.

Quadratically Constrained Quadratic Programs (QCQP)

If the inequality constraints are also convex quadratics, the problem is a QCQP: \[ \begin{aligned} \text{minimize} &\quad \frac{1}{2}x^\top P_0 x + q_0^\top x + r_0 \\ \text{subject to} &\quad \frac{1}{2}x^\top P_i x + q_i^\top x + r_i \le 0, \quad i=1,\dots,m \\ &\quad Ax = b \end{aligned} \] Each $P_i \succeq 0$ ensures convexity.

Second-Order Cone Programs (SOCP)

A second-order cone program has constraints of the form \[ \begin{aligned} \text{minimize} &\quad f^\top x \\ \text{subject to} &\quad \|A_i x + b_i\|_2 \le c_i^\top x + d_i, \quad i=1,\dots,m \\ &\quad Fx = g \end{aligned} \]

Special cases:

If $c_i = 0$ for all $i$, the SOCP becomes a QCQP: $(A_i x + b_i)^\top (A_i x + b_i) \le d_i^2$.
If $A_i = 0$ for all $i$, the SOCP becomes a linear program: $-c_i^\top x - d_i \le -\|b_i\|$.

SOCPs unify QP and QCQP in a single convex framework.

Robust Linear Programming

In many applications, the parameters in the constraints are uncertain: \[ \begin{aligned} \text{minimize} &\quad c^\top x \\ \text{subject to} &\quad a_i^\top x \le b_i, \quad i=1,\dots,m \end{aligned} \]

Deterministic (ellipsoidal) model

Assume each uncertain vector lies in an ellipsoid \[ \mathcal{E}_i = \{\bar{a}_i + P_i u \mid \|u\|_2 \le 1\}. \] The robust constraint becomes \[ \bar{a}_i^\top x + \|P_i^\top x\|_2 \le b_i, \] which is an SOCP because \[ \sup_{\|u\|_2 \le 1} u^\top (P_i^\top x) = \|P_i^\top x\|_2. \]

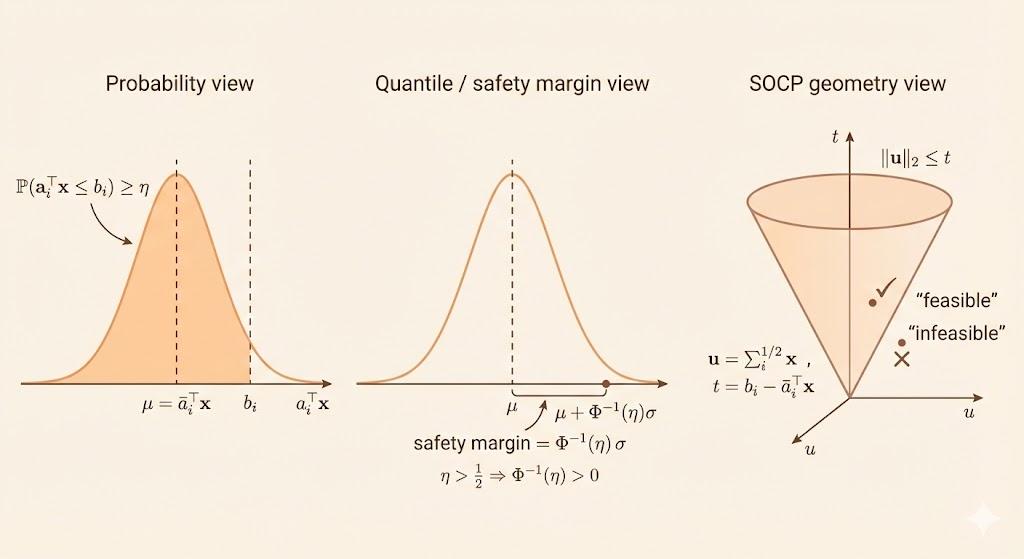

Stochastic (chance) model

Assume $a_i \sim \mathcal{N}(\bar{a}_i, \Sigma_i)$. Then $a_i^\top x$ is Gaussian with

mean $\bar{a}_i^\top x$
variance $x^\top \Sigma_i x$

A chance constraint \[ \mathrm{prob}(a_i^\top x \le b_i) \ge \eta \] reduces to the SOCP \[ \bar{a}_i^\top x + \Phi^{-1}(\eta)\|\Sigma_i^{1/2} x\|_2 \le b_i, \] for $\eta \ge 1/2$.
