Lecture 2: Multiplying and Factoring Matrices

Matrix Methods

Factorization

SVD

MIT 18.065

Author

Chao Ma

Published

December 22, 2025

Overview

Five common ways to factor a matrix ($LU$, $QR$, spectral, diagonalization, SVD)
Elimination as a sum of rank-1 updates
Four fundamental subspaces and a null space example

Five Ways to Factor a Matrix

$LU$: elimination with lower and upper triangular matrices
$QR$: orthonormal columns times an upper triangular matrix
Spectral: $S = Q\Lambda Q^{\top}$ for symmetric matrices
Diagonalization: $A = X\Lambda X^{-1}$ for eigenvectors
SVD: $A = U\Sigma V^{\top}$ for any matrix

LU Factorization

Elimination factors a matrix into a lower and upper triangular pair.

Example (2x2)

\[ A=\begin{bmatrix}2&3\\4&7\end{bmatrix} \]

Eliminate row 2 by $\text{row}_2 - 2(\text{row}_1)$:

\[ U=\begin{bmatrix}2&3\\0&1\end{bmatrix} \]

The first row of $L$ is $\begin{bmatrix}1&0\end{bmatrix}$, and the second row is $\begin{bmatrix}2&1\end{bmatrix}$ because \[ \text{row}_{A2} = 2(\text{row}_{U1}) + 1(\text{row}_{U2}) \]

So \[ L=\begin{bmatrix}1&0\\2&1\end{bmatrix},\quad A=LU \]

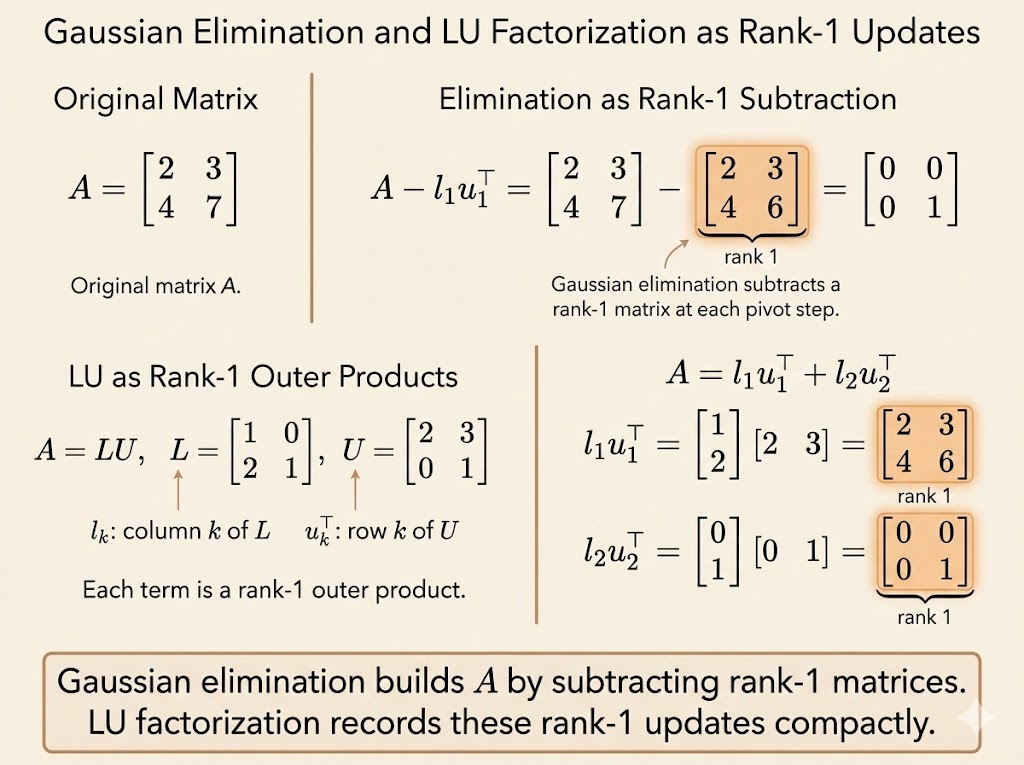

Elimination as Rank-1 Updates

Elimination can be viewed as a sum of rank-1 matrices:

\[ A \rightarrow (\text{Col}_1\text{Row}_1) + \begin{bmatrix}0&\dots&0\\0&A_2\end{bmatrix} \]

Using the same example:

\[ \begin{bmatrix}2&3\\4&7\end{bmatrix} \rightarrow \begin{bmatrix}2&3\\4&6\end{bmatrix}_{\text{rank }1} \;+\; \begin{bmatrix}0&0\\0&1\end{bmatrix}_{\text{rank }1} \]

So \[ LU=(l_1u_1^{\top})_{\text{rank }1} + (l_2u_2^{\top})_{\text{rank }1} \]

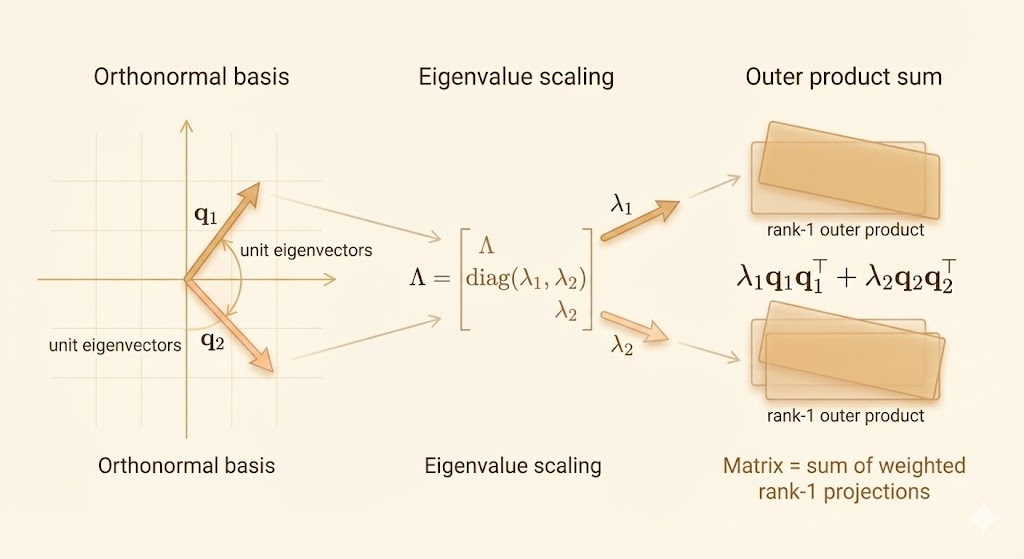

Spectral Decomposition

We can rewrite \[ S=(Q\Lambda)Q^{\top}=\sum_k \text{Col}_k(Q\Lambda)\,\text{Row}_k(Q^{\top}) \]

Each $\text{Col}_k(Q\Lambda)\text{Row}_k(Q^{\top})$ is rank-1.

Columns of Q scaled by Lambda

\[ \begin{bmatrix}|&\dots&|\\ q_1&\dots&q_n\\ |&\dots&|\end{bmatrix} \begin{bmatrix}\lambda_1&\dots&0\\ \dots&\dots&\dots\\ 0&\dots&\lambda_n\end{bmatrix} \]

So the columns are $q_1\lambda_1,\dots,q_n\lambda_n$.

This gives: \[ S = \sum_{i=1}^n \lambda_i q_i q_i^{\top} \]

Check

Multiply by $q_1$: \[ Sq_1 = \sum_{i=1}^n \lambda_i q_i q_i^{\top} q_1 \]

Because $q_i^{\top}q_1=0$ for $i\ne 1$ and $q_1^{\top}q_1=1$: \[ Sq_1=\lambda_1 q_1 \]

Diagonalization: $A = X\Lambda X^{-1}$

Eigenvectors in $X$ and eigenvalues in $\Lambda$ give a diagonal form of $A$.

Singular Value Decomposition: $A = U\Sigma V^{\top}$

$U$: orthogonal
$\Sigma$: diagonal (singular values)
$V$: orthogonal

Four Fundamental Subspaces

For an $m \times n$ matrix $A$ with rank $r$:

Column space $C(A)$: subspace of $\mathbb{R}^m$, dimension $r$
Row space $C(A^{\top})$: subspace of $\mathbb{R}^n$, dimension $r$
Null space $N(A)$: subspace of $\mathbb{R}^n$, dimension $n-r$
Left null space $N(A^{\top})$: subspace of $\mathbb{R}^m$, dimension $m-r$

Null Space

Null space is all solutions to $Ax=0$.

Properties: - If $Ax=0$ and $Ay=0$, then $A(x+y)=0$ - If $Ax=0$, then $A(cx)=0$

These show the null space is a subspace.

Example

\[ A=\begin{bmatrix}1&2&4\\2&4&8\end{bmatrix} \]

$m=2$, $n=3$, rank $r=1$
Null space dimension: $n-r=2$
Two independent null space vectors: $\begin{bmatrix}-4\\0\\1\end{bmatrix}$, $\begin{bmatrix}0\\-2\\1\end{bmatrix}$

Rows of $A$ are orthogonal to vectors in the null space.

Exercises

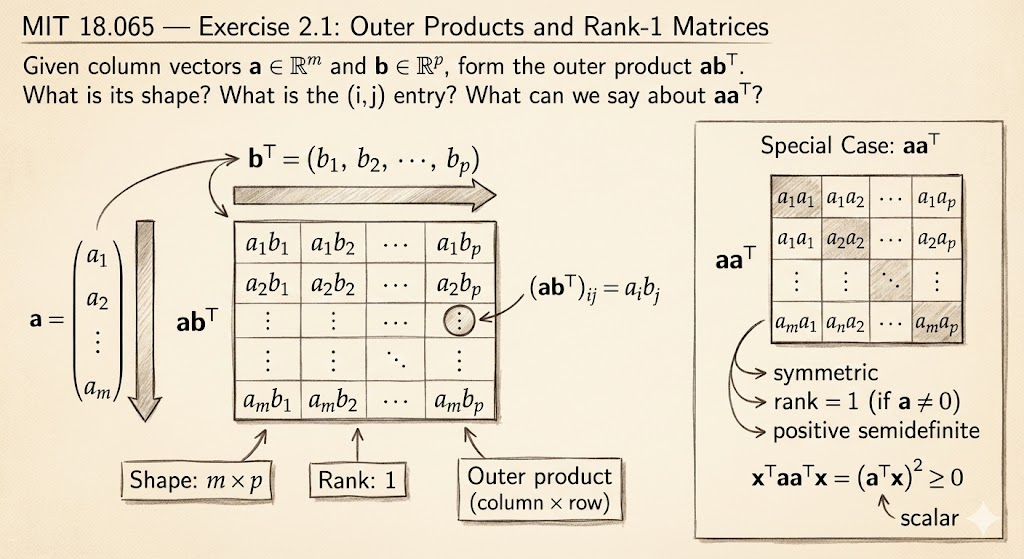

Suppose $a$ and $b$ are column vectors with components $a_1,\dots,a_m$ and $b_1,\dots,b_p$.
Can you multiply $ab^{\top}$? What is the shape? What is entry $(i,j)$? What can you say about $aa^{\top}$?

We can multiply $ab^{\top}$; the shape is $m\times p$.
Entry $(i,j)$ equals $a_i b_j$.

$aa^{\top}$:
- square ($m\times m$)
- symmetric: $(aa^{\top})^{\top}=aa^{\top}$
- rank 1
- PSD: $x^{\top}aa^{\top}x=(a^{\top}x)^2\ge 0$
Exercise 1 solution
If $A$ has columns $a_1,a_2,a_3$ and $B=I$, what are the rank-1 matrices $a_1b_1^{\top}$, $a_2b_2^{\top}$, $a_3b_3^{\top}$? They should add to $AI=A$.
- $a_1b_1^{\top}$:
\[ a_1b_1^{\top} = \begin{bmatrix}|&|&|\\ a_1&0&0\\ |&|&|\end{bmatrix} \]
- $a_2b_2^{\top}$:
\[ a_2b_2^{\top} = \begin{bmatrix}|&|&|\\ 0&a_2&0\\ |&|&|\end{bmatrix} \]
- $a_3b_3^{\top}$:
\[ a_3b_3^{\top} = \begin{bmatrix}|&|&|\\ 0&0&a_3\\ |&|&|\end{bmatrix} \]
