Lecture 1: The Column Space of A Contains All Vectors Ax

Matrix Methods

Column Space

Rank

MIT 18.065

Author

Chao Ma

Published

December 20, 2025

Overview

This lecture builds the geometric meaning of column space and rank:

$Ax$ is always a linear combination of the columns of $A$
The column space $C(A)$ contains every vector of the form $Ax$
Rank counts independent columns (and independent rows)
CR factorization separates basis columns from how they combine
Row-by-column vs column-by-row views of matrix multiplication

Ax and the Column Space

Let \[ A = \begin{bmatrix} 2 & 1 & 3 \\ 3 & 1 & 4 \\ 5 & 7 & 12 \end{bmatrix}, \quad x = \begin{bmatrix} x_1 \\ x_2 \\ x_3 \end{bmatrix} \]

Then \[ Ax = x_1 \begin{bmatrix}2\\3\\5\end{bmatrix} + x_2 \begin{bmatrix}1\\1\\7\end{bmatrix} + x_3 \begin{bmatrix}3\\4\\12\end{bmatrix} \]

So every $Ax$ is a linear combination of the columns of $A$.

Key idea: The set of all vectors $Ax$ equals the column space $C(A)$.

Examples

Rank 1 matrix (column space is a line): \[ \begin{bmatrix} 1 & 3 & 8 \\ 1 & 3 & 8 \\ 1 & 3 & 8 \end{bmatrix} = \begin{bmatrix} 1 \\ 1 \\ 1 \end{bmatrix} \begin{bmatrix} 1 & 3 & 8 \end{bmatrix} = uv^T \]

Rank 2 matrix (column space is a plane): If $c_1 + c_2 = c_3$, then the three columns lie in the same plane.

Independent Columns and Rank

The number of independent columns is the rank of $A$.

Basis and CR Factorization

Using the same matrix: \[ A = \begin{bmatrix} 2 & 1 & 3 \\ 3 & 1 & 4 \\ 5 & 7 & 12 \end{bmatrix} = \begin{bmatrix} 2 & 1 \\ 3 & 1 \\ 5 & 7 \end{bmatrix} \begin{bmatrix} 1 & 0 & 1 \\ 0 & 1 & 1 \end{bmatrix} = CR \]

Two independent columns in $\mathbb{R}^3$ span the column space
Two independent rows span the row space
Column rank = row rank = matrix rank = 2

Shape check: $A_{3 \times 3} = C_{3 \times 2} R_{2 \times 3}$.

Column Space of a Product

Is $ABCDx$ in the column space of $A$? Yes.

\[ ABCDx = A(BCDx) \]

So it is always a linear combination of the columns of $A$.

Matrix Multiplication: Rows vs Columns

Let $A$ be $m \times n$ and $B$ be $n \times p$.

Row by Column (Inner Product)

Each entry is a dot product (row of $A$ with column of $B$)
There are $m$ rows and $p$ columns, so $m \cdot p$ dot products
Each dot product uses $n$ multiplications and additions
Complexity: $m \cdot p \cdot n$

Column by Row (Outer Product)

The $k$-th column of $A$ times the $k$-th row of $B$ gives an $m \times p$ matrix. Summing those outer products:

\[ AB = \sum_{k=1}^n (\text{col}_k(A))(\text{row}_k(B)) \]

Each outer product builds an $m \times p$ matrix, and we do this for $n$ columns: $n \cdot m \cdot p$ total multiplications and additions.

Therefore, every column of $AB$ lies in the column space of $A$.

Exercises

1. A Nontrivial Combination to Zero

Give three nonzero vectors in $\mathbb{R}^4$ whose combination is zero, then write it as $Ax = 0$.

\[ v_1=\begin{bmatrix}1\\1\\0\\0\end{bmatrix},\quad v_2=\begin{bmatrix}-1\\0\\0\\0\end{bmatrix},\quad v_3=\begin{bmatrix}0\\-1\\0\\0\end{bmatrix} \]

\[ 1 \cdot v_1 + 1 \cdot v_2 + 1 \cdot v_3 = \mathbb{0} \]

\[ A= \begin{bmatrix} 1 & -1 & 0 \\ 1 & 0 & -1 \\ 0 & 0 & 0 \\ 0 & 0 & 0 \end{bmatrix}, \quad x= \begin{bmatrix} 1\\1\\1 \end{bmatrix}, \quad Ax=0 \]

Shapes: $A$ is $4 \times 3$, $x$ is $3 \times 1$, $0$ is $4 \times 1$.

2. Null Space of the All-Ones Matrix

Let \[ A= \begin{bmatrix} 1 & 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 \end{bmatrix} \]

Find two independent vectors $x$ and $y$ that solve $Ax=0$ and $Ay=0$.

\[ x=\begin{bmatrix}1\\-1\\0\end{bmatrix},\quad y=\begin{bmatrix}0\\1\\-1\end{bmatrix} \]

Column combination for $Ax=0$: \[ Ax= 1 \cdot \begin{bmatrix}1\\1\\1\end{bmatrix} -1 \cdot \begin{bmatrix}1\\1\\1\end{bmatrix} 0 \cdot \begin{bmatrix}1\\1\\1\end{bmatrix} =\mathbb{0} \]

Only two independent vectors exist because $A$ has rank 1, so the null space dimension is $3-1=2$.

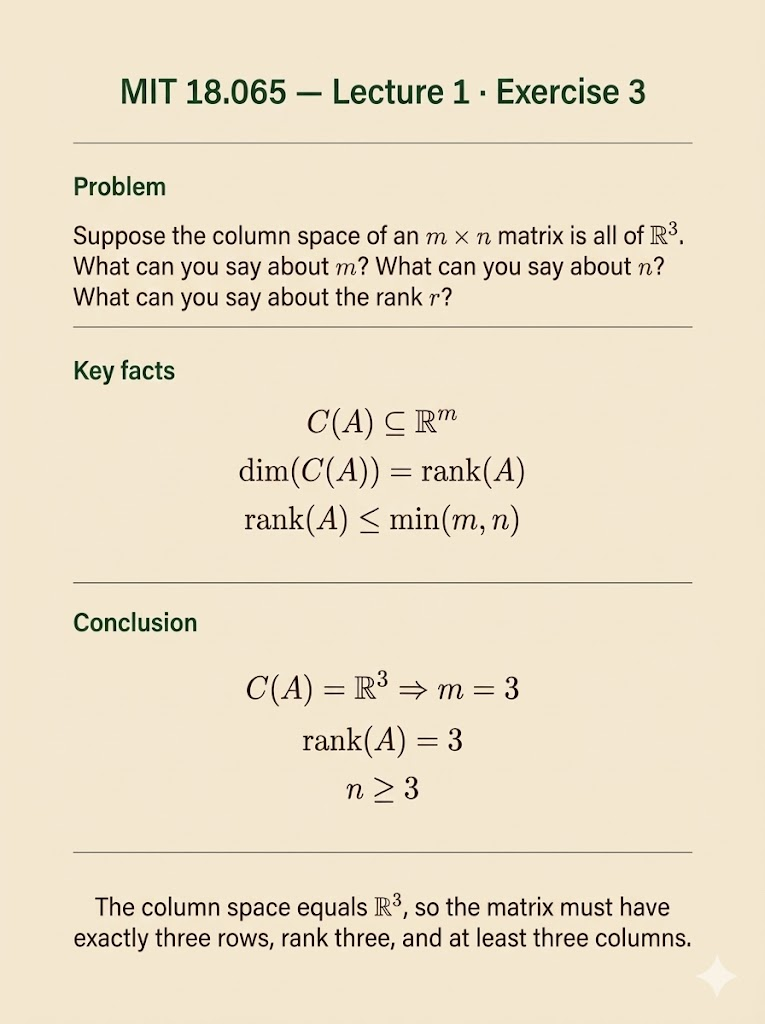

3. Column Space Equals $\mathbb{R}^3$

If the column space of an $m \times n$ matrix is all of $\mathbb{R}^3$, what can you say about $m$, $n$, and the rank?

$m=3$
$n \ge 3$
$\text{rank}(A)=3$

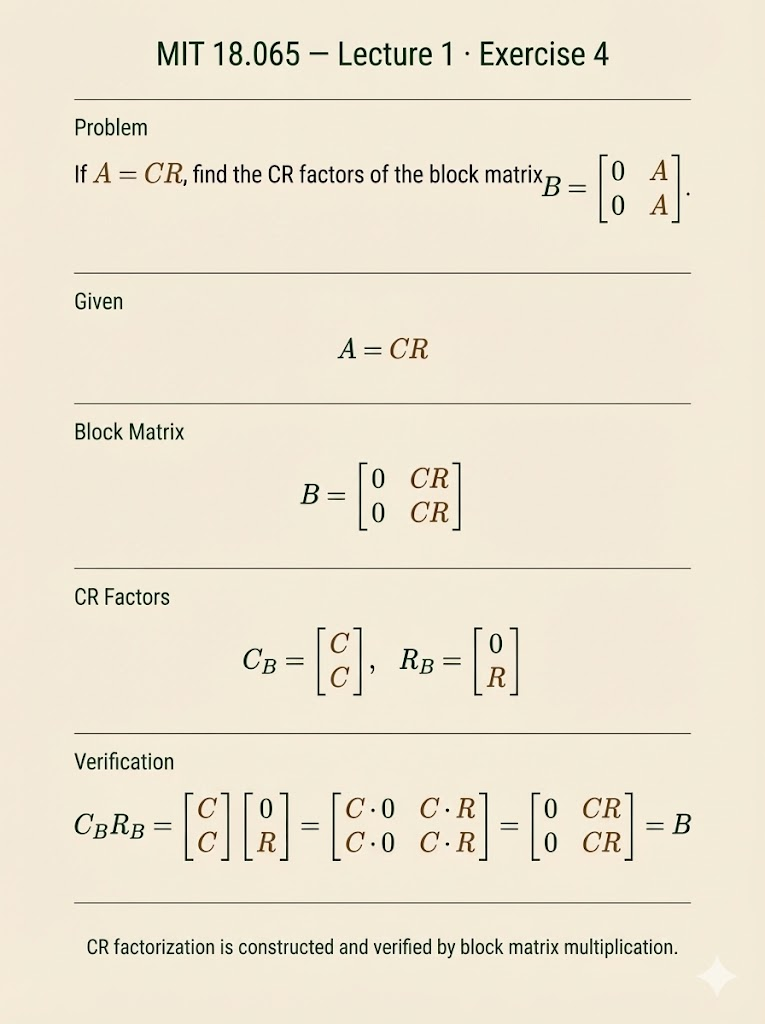

4. CR Factorization Block Matrix

If $A=CR$, find the CR factors of \[ B=\begin{bmatrix}0 & A\\ 0 & A\end{bmatrix}. \]

\[ B= \begin{bmatrix}0 & CR\\ 0 & CR\end{bmatrix} = \begin{bmatrix}C\\ C\end{bmatrix} \begin{bmatrix}0 & R\end{bmatrix} \]

So \[ C_B=\begin{bmatrix}C\\ C\end{bmatrix}, \quad R_B=\begin{bmatrix}0 & R\end{bmatrix} \]
