Efficient AI Lecture 6: Quantization (Part II)

Efficient AI

Quantization

Post-Training Quantization

Quantization-Aware Training

Binary Networks

Post-training quantization granularity, clipping and calibration, AdaRound, QAT with STE, and binary/ternary quantization methods from Efficient AI Lecture 6.

Author

Chao Ma

Published

April 6, 2026

Slides: Lecture 6 PDF

Post-Training Quantization

Quantization Granularity

Per-Tensor Quantization

Per-tensor quantization uses one scaling factor for the whole tensor.

simple and hardware-friendly
often works well for large models
can hurt accuracy more on small models

For the example weight matrix

\[ W = \begin{bmatrix} 2.09 & -0.98 & 1.48 & 0.09 \\ 0.05 & -0.14 & -1.08 & 2.12 \\ -0.91 & 1.92 & 0 & -1.03 \\ 1.87 & 0 & 1.53 & 1.49 \end{bmatrix}, \]

we have $|r_{\max}| = 2.12$. In a 2-bit signed example with $q_{\max}=1$,

\[ S = \frac{|r_{\max}|}{q_{\max}} = 2.12. \]

The quantized matrix is

\[ \begin{bmatrix} 1 & 0 & 1 & 0 \\ 0 & 0 & -1 & 1 \\ 0 & 1 & 0 & 0 \\ 1 & 0 & 1 & 1 \end{bmatrix} \]

and the reconstructed matrix is

\[ \begin{bmatrix} 2.12 & 0 & 2.12 & 0 \\ 0 & 0 & -2.12 & 2.12 \\ 0 & 2.12 & 0 & 0 \\ 2.12 & 0 & 2.12 & 2.12 \end{bmatrix}. \]

The reconstruction error is

\[ \|W - S \odot q_W\|_F = 2.28. \]

Per-Channel Quantization

Per-channel quantization gives each channel its own scale. That usually reduces distortion because different rows or channels can have very different dynamic ranges.

Using the same matrix,

$|r_{\max}|=2.09$, so $S_0 = 2.09$
$|r_{\max}|=2.12$, so $S_1 = 2.12$
$|r_{\max}|=1.92$, so $S_2 = 1.92$
$|r_{\max}|=1.87$, so $S_3 = 1.87$

The quantized matrix is

\[ \begin{bmatrix} 1 & 0 & 1 & 0 \\ 0 & 0 & -1 & 1 \\ 0 & 1 & 0 & -1 \\ 1 & 0 & 1 & 1 \end{bmatrix} \]

with reconstruction

\[ \begin{bmatrix} 2.09 & 0 & 2.09 & 0 \\ 0 & 0 & -2.12 & 2.12 \\ 0 & 1.92 & 0 & -1.92 \\ 1.87 & 0 & 1.87 & 1.87 \end{bmatrix} \]

and error

\[ \|W - S \odot q_W\|_F = 2.08. \]

So per-channel quantization improves the reconstruction by adapting scale to local statistics.

Group Quantization

Modern GPUs support even finer scaling granularity. Blackwell introduces micro-tensor scaling to help push low-bit formats like FP4 further.

Specification	B200 GPU	B100 GPU
FP4 Tensor Core	18 petaFLOPS	14 petaFLOPS
FP8/FP6 Tensor Core	9 petaFLOPS	7 petaFLOPS
INT8 Tensor Core	9 petaOPS	7 petaOPS
FP16/BF16 Tensor Core	4.5 petaFLOPS	3.5 petaFLOPS

Vector-Scaled Quantization (VSQ)

\[ r = S(q-Z) \rightarrow r = \gamma \cdot S_q (q-Z) \]

$\gamma$: per-tensor floating-point scale
- more expensive
- coarser granularity
$S_q$: per-vector integer scale
- less expensive
- finer granularity

For 4-bit quantization with a 4-bit vector scale every 16 elements, the effective bit width is

\[ 4 + \frac{4}{16} = 4.25. \]

Multi-Level Scaling (MX)

Multi-level scaling uses several nested scale levels:

\[ r = (q-z) \cdot s_{l_0} \cdot s_{l_1} \cdots \]

Quantization Approach	Data Type	L0 Group Size	L0 Scale Data Type	L1 Group Size	L1 Scale Data Type	Effective Bit Width
Per-Channel Quant	INT4	Per channel	FP16	-	-	4
VSQ	INT4	16	UINT4	Per channel	FP16	4.25
MX4	S1M2	2	E1M0	16	E8M0	4
MX6	S1M4	2	E1M0	16	E8M0	6
MX9	INT8	2	E1M0	16	E8M0	9

Dynamic Range Clipping

Unlike weights, activation ranges vary across inputs.

Here, activation means the output tensor of a layer, not the activation function itself.

So before deployment we need activation statistics. Two common ways are:

during training, if we own the training process
calibration, if we only have a pretrained model

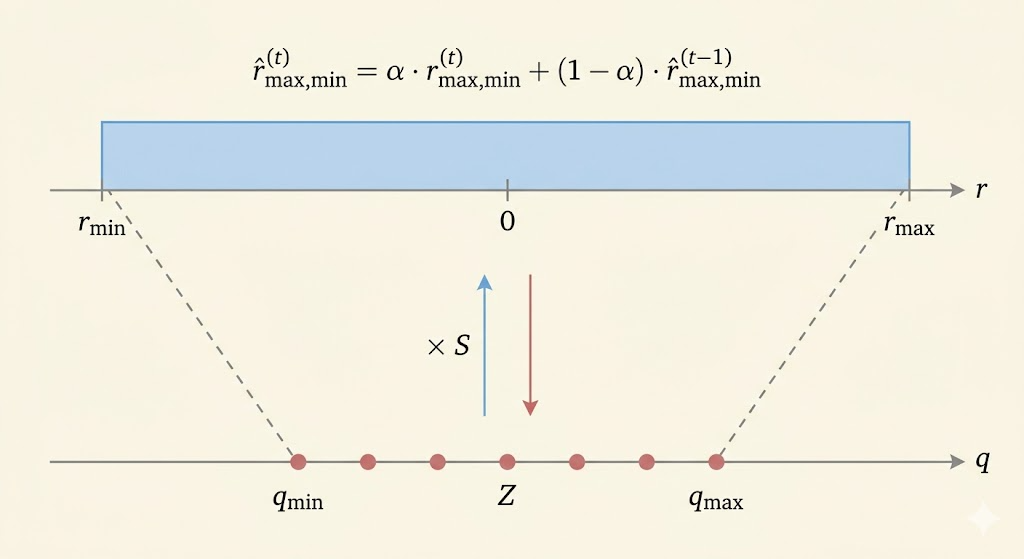

During training, a moving average can track the range:

\[ \hat r^{(t)}_{\max,\min} = \alpha \cdot r^{(t)}_{\max,\min} + (1-\alpha) \cdot \hat r^{(t-1)}_{\max,\min}. \]

For calibration, we run representative samples through the FP32 model and choose the clipping range that minimizes reconstruction distortion, often via mean-square error:

\[ \min_{r_{\max}} \mathbb{E}[(X-Q(X))^2]. \]

Clipping is a tradeoff:

outliers outside the chosen range are saturated, creating clipping error
but the quantization buckets become denser over the important region, improving precision for most values

A statistics-based way to choose the clipping point is KL divergence:

\[ D_{KL}(P\|Q) = \sum_{i=1}^{N} P(x_i) \log \frac{P(x_i)}{Q(x_i)}. \]

Rounding

Rounding to nearest is not always the best choice. Learning-based rounding tries to choose the quantized value that minimizes downstream error.

AdaRound writes

\[ \tilde w = \left\lfloor \lfloor w \rfloor + \delta \right\rceil, \qquad \delta \in [0,1], \]

and optimizes a relaxed rounding decision:

\[ \operatorname*{argmin}_{\mathbf V} \|\mathbf W \mathbf x - \tilde{\mathbf W}\mathbf x\|_F^2 + \lambda f_{\mathrm{reg}}(\mathbf V) \]

which becomes

\[ \operatorname*{argmin}_{\mathbf V} \left\|\mathbf W \mathbf x - [\lfloor \mathbf W \rfloor + \mathbf h(\mathbf V)]\mathbf x\right\|_F^2 + \lambda f_{\mathrm{reg}}(\mathbf V). \]

$\mathbf V$: latent rounding variables
$h(\cdot)$: maps those variables into $(0,1)$
$f_{\mathrm{reg}}$: encourages hard rounding decisions

Quantization-Aware Training

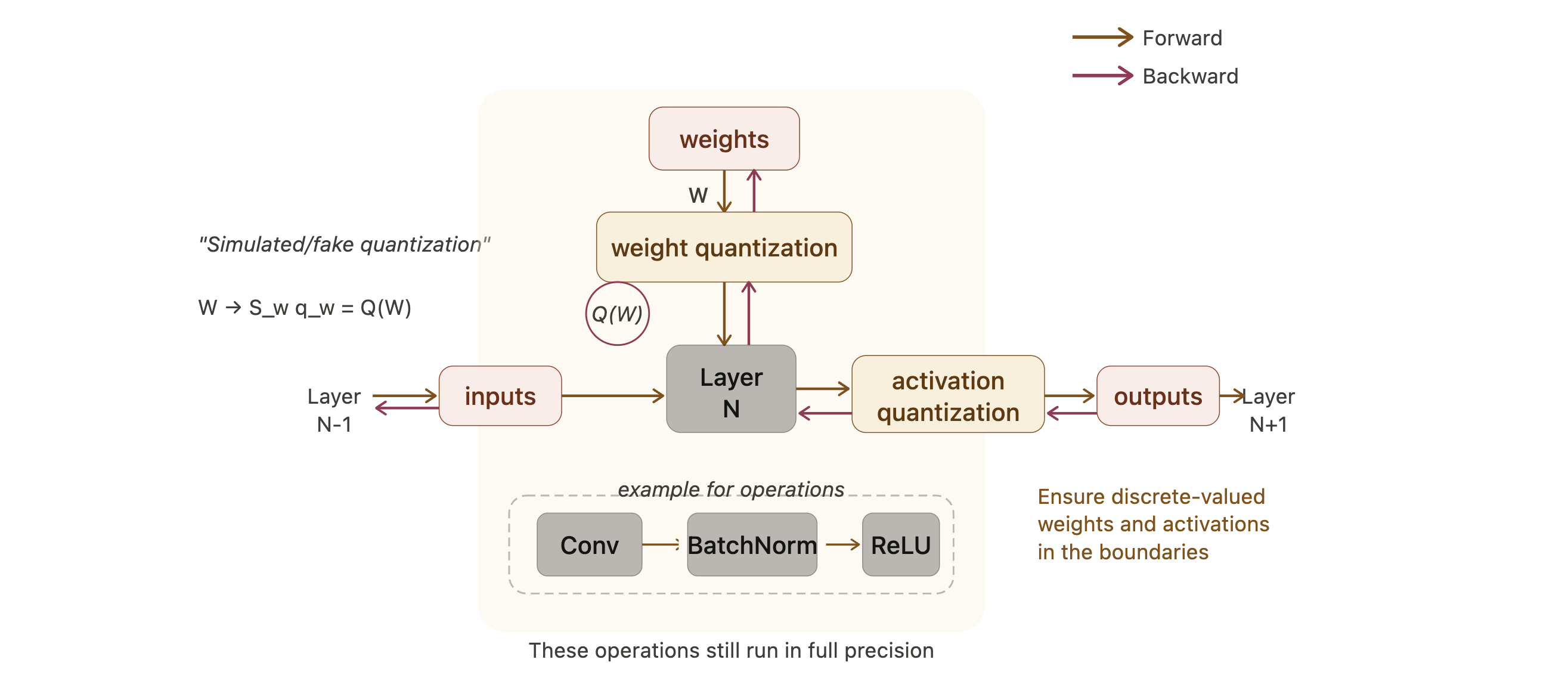

Simulated Quantization

QAT keeps a full-precision copy of the weights during training, but inserts quantization in the forward pass so the model learns to live with low-bit inference.

After training, only the quantized weights are used for inference.

Straight-Through Estimator (STE)

The problem is that quantization is discrete, so its true derivative is zero almost everywhere:

\[ \frac{\partial Q(W)}{\partial W} = 0. \]

STE uses a surrogate backward rule and simply passes the gradient through the quantizer:

\[ \frac{\partial L}{\partial W} = \frac{\partial L}{\partial Q(W)}. \]

This is not the exact derivative, but it makes optimization possible in practice.

Binary Quantization

Deterministic Binarization

\[ q = \operatorname{sign}(r) = \begin{cases} +1, & r \ge 0 \\ -1, & r < 0 \end{cases} \]

Stochastic Binarization

Instead of a hard sign, stochastic binarization turns the value into a probability of $+1$ or $-1$.

BinaryConnect

BinaryConnect uses a hard sigmoid:

\[ \sigma(r) = \min(\max((r+1)/2, 0), 1). \]

probability of $+1$: $\sigma(r)$
probability of $-1$: $1-\sigma(r)$

Binary Weight Networks (BWN)

BWN adds a single floating-point scale for the whole binary weight matrix:

$W^{\mathbb B} = \operatorname{sign}(W)$
$\alpha = \frac{1}{N}\|W\|_1$

That scaling makes the binary matrix better match the original real-valued weights.

XNOR-Net

XNOR-Net binarizes both weights and activations. Then multiply-accumulate can be approximated by:

XNOR of bit patterns
popcount to count matches

Input	Weight	Operations	Memory	Computation
Float	Float	$+,\times$	$1\times$	$1\times$
Float	Binary	$+,-$	about $32\times$ less	about $2\times$ less
Binary	Binary	XNOR, popcount	about $32\times$ less	about $58\times$ less

Ternary Quantization

Ternary Weight Networks (TWN)

\[ q = \begin{cases} r_p, & r > \Delta \\ 0, & |r| \le \Delta \\ -r_p, & r < -\Delta \end{cases} \]

where

threshold: $\Delta = 0.7\,\mathbb E(|r|)$
reconstruction value: $r_p = \mathbb E_{|r|>\Delta}(|r|)$

So TWN keeps three values: positive, zero, and negative.

Trained Ternary Quantization (TTQ)

\[ q = \begin{cases} w_p, & r > \Delta \\ 0, & |r| \le \Delta \\ -w_n, & r < -\Delta \end{cases} \]

TTQ improves on TWN by making the positive and negative scales trainable:

$w_p$: learned positive scale
$w_n$: learned negative scale

This allows asymmetric positive and negative magnitudes.

Colab: Quantization Colab
